Metal Injection Molding with 3DM™ Technology

Not every part is a perfect fit for metal injection molding. Here’s a few features that mean your component could benefit from 3DM™:

3DM™ Technology

MIM is known for producing complex geometries, but parts were limited to 20 grams. What if you could leverage only the best parts of the process? Now you can.

The Metal Injection Molding process has a successful track record of manufacturing strong, complex metal parts for demanding applications in a high volume. With the combination of a state-of-the-art automated molding cell, extensive high temperature sintering capacity and advanced feedstock options, customers can produce strong, highly complex 3D components in Metal Injection Molding with total design freedom.

Our approach to metal injection molding capitalizes on the technology’s best attributes while introducing non-traditional solutions the process’s biggest shortcomings. Metal injection molding requires a manufacturing partner with the equipment, expertise and drive to reinvent the status quo.



Accompanying DSB's existing sintering capacity on the production floor, the New Technology Center houses a state-of-the-art automated molding cell to drive the most efficient Metal Injection Molding operations for complex, functional components.

Design freedom for 3D parts

MIM is a solution for parts with two or more pieces that can be designed into a single piece. Among other design advantages, injection mold design allows for internal and external threads without post processing.

Parts with high complexity

Large components that can’t be made in conventional powder metallurgy because of the design complexity are a fit for metal injection molding. The more complex the geometry, the more an injection mold design can help.

Efficient high volume production

Traditionally, large MIM parts for high volume production have been a fantasy. Our partnership with Tundra enables cost-efficient series production for MIM components greater than 100 grams.

A need for tight tolerances

Components with complex designs and a requirement for very tight tolerances will benefit from 3DM. Meeting the tightest tolerances is one of MIM’s shining features.

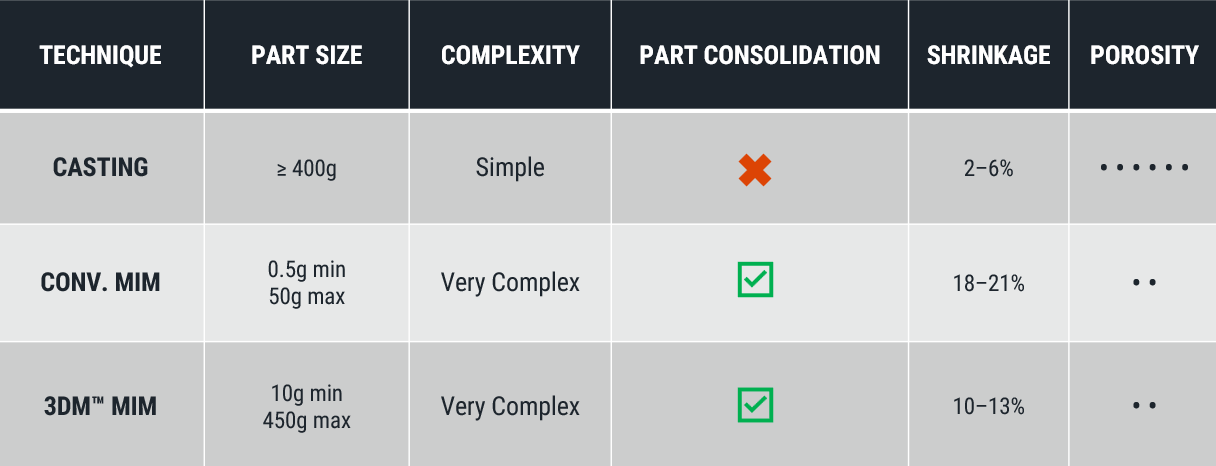

3DM Advantages Limitations Table

DOWNLOAD THE FULL GUIDE

Powder Metallurgy Process Matrix

All-in-one reference chart combines design attributes, manufacturing characteristics, and sourcing-related elements of each technology essential to planning powder metal part production.

GET IT NOW

DOWNLOAD THE FULL GUIDE

3DM™ Technology Characteristics Book

Gain insights into what part characteristics are best suitable to leverage the advantages of 3DM™.

DOWNLOAD NOW

Optimizing MIM Components Through:

Improved Particle Packing

Up to 87% by volume – allowing for lower sintering temperatures and improved isotropic characteristics

Isotropic Shrinkage

You can expect shrinkage of 8-11%, compared to traditional shrinkage of 16-20%

High Dimensional Stability

Producing near-wrought properties and reduced part variability

3DM and MIM Characteristics Graphic

FREE ON-DEMAND WEBINAR

How Advances in MIM Technology Can Help Resolve Market Transitions

Discover the advances powder metal manufacturing and 3DM™ Technology has over conventional metalworking processes, and how it can help you overcome the technical and commercial challenges that effect your bottom line.

DISCOVER HOW

Understanding Injection Molding

Injection Molding Products - Not Just for Plastics

Injection molding is a prime manufacturing process that involves injecting molten material into a mold cavity under high pressure, empowering the rapid production of different parts. While primarily associated with plastics, injection molding can also be applied to metal products through the process of metal injection molding (MIM).

What is Metal Injection Molding?

Metal injection molding is a metalworking process/technique using finely-powdered metal to manufacture both simple and complex metal parts. The fine powder is combined with binder material to create what's called a feedstock. This feedstock is what eventually gets shaped into the final product.

MIM produces complicated shapes while delivering a highly repeatable process. They also come out near fully dense which allows tertiary tasks like plating and heat treating to be performed more easily. That is part of what makes metal injection molding less time-consuming and more cost-efficient.



GreenAndSinter

Nontraditional MIM Part Production

Our partnership with Tundra Companies makes high volume production of large, complex metal injection molding components economically possible.

DSB Technologies is your preferred production partner of parts made with Tundra’s Dynamik® materials platform, including metal composite feedstocks and powders. With our metallurgical production expertise and Tundra’s successful track record in coating materials, you can produce larger and more complex parts previously not possible in MIM.

With traditional MIM materials, the uncertainty of isotropic shrinkage significantly increases with larger parts, often creating high part variability, low dimensional stability and expensive material processing. These obstacles have kept most MIM components around the size of 25 grams or less. Dynamik® offers high particle concentration materials that can be processed on established equipment which enables large, complex part production in MIM – including part sizes greater than 100 grams.

DYNAMIK® VS. CONVENTIONAL MATERIALS:

The Green & Sinter parts on the left were produced with Tundra's Dynamik® material. The Green & Sinter parts on the right were produced with a conventional MIM material.





Metal Injection Molding FAQ

What materials can be used in metal injection molding?

What materials can be used in metal injection molding?

There are a wide variety of materials available for metal injection molding, and they generally fall into four categories: Ferrous alloys—steels, stainless steels, tool steels, iron-nickel magnetic alloys, and specialty ferrous alloys such as Invar and Kovar. Tungsten alloys—tungsten heavy alloys and tungsten-copper.

What size particle is metal injection molding?

What size particle is metal injection molding?

Metal injection molding (MIM) typically uses metal powders with particle sizes ranging from around 0.1 to 20 micrometers (μm). These fine metal powders are mixed with a binder material to form a feedstock that can be injected into molds. The small particle size is crucial for achieving high packing density and ensuring uniform distribution of metal particles within the molded part. This results in parts with excellent mechanical properties and fine surface finish.

Metal injection molding vs die casting

Metal injection molding vs die casting

Injection molding is suitable for producing parts with complex shapes and high precision, which can achieve rich details and uniform wall thickness forming. Die casting is suitable for producing large quantities of parts, which can achieve high production efficiency and good surface quality.

What is Metal Injection Molding (MIM)?

What is Metal Injection Molding (MIM)?

Metal injection molding (MIM) is a metalworking process in which finely-powdered metal is mixed with binder material to create a "feedstock" that is then shaped and solidified using injection molding.

What are the steps in metal injection molding?

What are the steps in metal injection molding?

The MIM process is typically explained as four unique processing steps (Compounding, Molding, De-binding, and Sintering) to produce a final part.

How long is the metal injection molding process?

How long is the metal injection molding process?

The entire cycle including debinding normally takes about 24 to 36 hours. As mentioned above, typical metal injection-molded parts are small and complex in nature. The process is more advantageous for more complex parts.

What are the benefits of metal injection molding?

What are the benefits of metal injection molding?

MIM allows for the production of complex geometries, high-volume production, and parts with tight tolerances. It also provides design freedom for 3D parts.

What are the limitations of traditional MIM?

What are the limitations of traditional MIM?

Traditional MIM is typically limited to parts weighing around 20 grams and may have issues with isotropic shrinkage and dimensional stability for larger parts.

What types of parts are suitable for MIM?

What types of parts are suitable for MIM?

Parts with high complexity, those requiring tight tolerances, and components that benefit from being produced in high volumes are ideal for MIM.

How does DSB Technologies enhance the MIM process?

How does DSB Technologies enhance the MIM process?

DSB Technologies uses advanced feedstock options and a state-of-the-art automated molding cell to produce stronger and more complex parts, overcoming traditional MIM limitations.

What are the environmental benefits of MIM?

What are the environmental benefits of MIM?

Reduced material waste and energy consumption compared to conventional methods.
